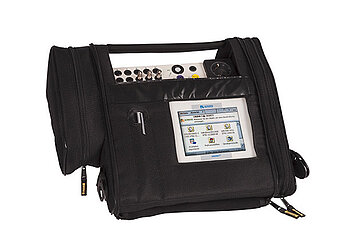

UNIMET® 810ST
UNIMET® 810ST
UNIMET® 810ST
UNIMET Intro English

用于服务目的的测试设备

第一且唯一的安全测试仪,它能够根据标准自动对比“参考值”与后面的测量。 .

Movies for UNIMET® 810ST »

问题? 联系我们!

特点

  • The Windows user interface provides an easy-to-use solution
  • Data exchange and memory via Control Center
  • Automatic, semi-automatic and manual test sequences
  • Data input via touch screen, keyboard or barcode scanner
  • Visual inspection, electrical safety and functional test userdefinable
  • Test sequences user-definable
  • Data memory > 10.000 data records
  • Filter function for fast data selection
  • Management of test dates
  • Multitenancy
  • Catalogue system
  • Test probe with two switching contacts for semi-automatic testing of conductive parts not connected to PE

Wide variety of interfaces

  • RS-232 interface
  • USB port for printer, scanner, keyboard and USB stick connection
  • PS/2 port for scanner and keyboard
  • Network connection via Ethernet (optional)


Standard accessories

  • Carrier bag of robust design and universal carrying concept
  • Measuring lead with test probe
  • Measuring lead with test clip
  • Null-modem cable
  • VK701-7 for testing non-heating devices
  • Data transfer software UNIMET® Control Center


Service

  • 36-month calibration interval
  • 36-month warranty
  • Software updates to be always up-to-date

应用

Standard compliant tests acc. to:

  • IEC 60601-1, 3rd Edition 1)
  • IEC 62353:2014
  • DIN EN 62353 (VDE 0751-1):2015-10
  • IEC 61010-1:2011-07 1)
  • ÖVE/ÖNORM EN 62353:2009-01
  • DIN VDE 0701-0702:2008-06
  • ÖVE E8701-1:03-01

1) These standards can be activated as a licence in the basic device.


Standard-compliant measurements

  • PE conductor resistance
  • Insulation resistance
  • Earth leakage current
  • Protective conductor current
  • Equipment leakage current
  • Touch current
  • Touch voltage
  • Direct measurement method
  • Differential measurement method
  • Equipment leakage current-alternative method
  • Applied part leakage current-alternative method
  • Applied part leakage current AC and DC
  • Patient auxiliary current AC and DC
  • Applied part leakage current – mains voltage on F-Type

UNIMET® 810ST 变体

The test system for manufacturers of medical devices UNIMET® 800ST – 25 A Version
Country specific device

DeviceArt.-No.
UNIMET® 810ST (D/D)B96028020
UNIMET® 810ST (GB/GB)B96028024
UNIMET® 810ST (CH/CH)B96028026
UNIMET® 810ST (B/B)B96028027
UNIMET® 810ST (US/US)B96028028
Software license for UNIMET®800ST/810ST Standard device for IEC 60601-1B96028200
Software license for UNIMET®800ST/810ST Standard device for IEC 61010-1B96028201


External power source 25 A

DeviceArt.-No.
EPS800 (D/D)B96028050
EPS800 (GB/GB)B96028054
EPS800 (CH/CH)B96028056
EPS800 (B/B)B96028057
EPS800 (US/US)B96028058

可选的附件,用于 UNIMET® 810ST

DeviceArt.-No.
TP800 active test probeB96020080
Barcode scanner -PS/2B96020082
DS32A Three-phase adaptor for testing medical electrical three-phase devices in operating condition (acc. to DIN EN 62353, DIN VDE 0751-1, DIN VDE 0701-0702)B96020098
TB3 TestboxB96020025
PK3 Test kitB96020009
